PZ MEDICAL
Didirikan pada tahun 2013, terletak di Taman Teknologi Segitiga Besi di Distrik Putuo, Shanghai PZMedical mengkhususkan diri dalam pengembangan dan pembuatan peralatan pencitraan sinar-X digital, dan telah menjadi salah satu pusat R&D Perangkat Medis paling canggih di Tiongkok.
Produk dari PZ MEDICAL:

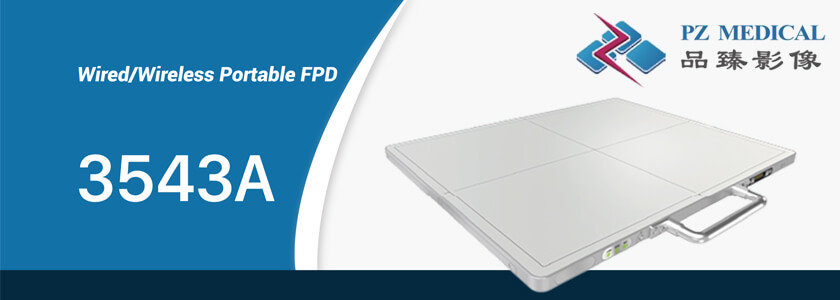

X RAY FLAT PANEL DETECTOR 3543A
Flat Panel Detector X Ray adalah alat yang keberadaan nya menggantikan kaset dan film pada x ray.
| No. AKL | KEMENKES RI AKL 21501918254 |
|---|---|
| Category | Accessories X-RAY ( FLAT PANEL DETECTOR ) |
| Type | 3543A |
| Brand | PZ MEDICAL |
| Made In | China |
| Weight | 3.3kg(Wireless)/2.9kg(Wired) |
| Dimension | 38x46x1.5cm |
| Detector Technology | a-Si |
| Scintillator | GOS/CSI |
| Image Size | 35×43cm (14x17in) |
| Pixel Matrix | 2560x3072 |
| Pixel Pitch | 140µm |
| A/D Conversion | 16bit |
| Minimum Detectable Dose | 20nGy(GOS) 14nGy(CSI) |
| Maximum Linear Dose (RQA5) | 150µGy(GOS) 110µGy(CSI) |
| Ghost(300µGy,60s) | <0.25% |
| Spatial Resuliton | 3.6LP/mm |
| Image Acquisition Time | 1s(wired)/2.5s(Wireless) |
| X-ray Voltage Range | 40-150KV |
| Battery Standby Time | 10H |
| Data Interface | GigE/802.11ac |
| Power Dissipation | 20W |
| Adapter Input | AC 100-240V, 50-60Hz |
| Adapter Output | DC 24V, 60W |
| Housing Material | Carbon, Alloy |
| Water Tightness | IPX3 |
| Operating Environment | 5-35°C, 10-75% RH |
| Warranty | 1 Years |

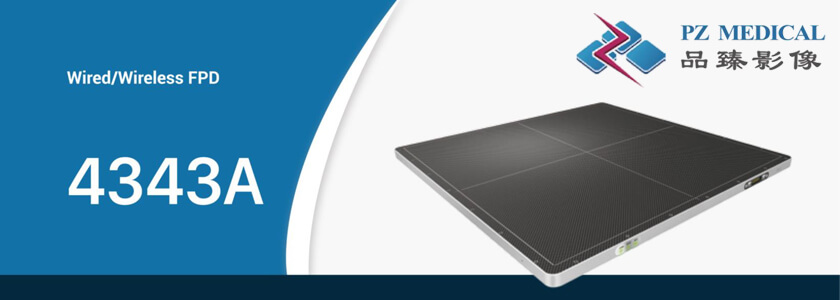

X RAY FLAT PANEL DETECTOR 4343A
Flat Panel Detector X Ray adalah alat yang keberadaan nya menggantikan kaset dan film pada x ray.
| No. AKL | KEMENKES RI AKL 21501918255 |
|---|---|
| Category | Accessories X-RAY ( FLAT PANEL DETECTOR ) |
| Type | 4343A |
| Brand | PZ MEDICAL |
| Made In | China |
| Weight | 4.3kg(Wireless)/3.8kg(Wired) |
| Dimension | 46x46x1.5cm |
| Detector Technology | a-Si |
| Scintillator | GOS/CSI |
| Image Size | 43x43cm (17x17in) |
| Pixel Matrix | 3072x3072 |
| Pixel Pitch | 140µm |
| A/D Conversion | 16bit |
| Minimum Detectable Dose | 20nGy(GOS) 14nGy(CSI) |
| Maximum Linear Dose (RQA5) | 150µGy(GOS) 110µGy(CSI) |
| Ghost(300µGy,60s) | <0.25% |
| Spatial Resuliton | 3.6LP/mm |
| Image Acquisition Time | 1s(wired)/2.5s(Wireless) |
| X-ray Voltage Range | 40-150KV |
| Battery Standby Time | 8H |
| Data Interface | GigE/802.11ac |
| Power Dissipation | 20W |
| Adapter Input | AC 100-240V, 50-60Hz |
| Adapter Output | DC 24V, 60W |
| Housing Material | Carbon, Alloy |
| Water Tightness | IPX3 |
| Operating Environment | 5-35°C, 10-75% RH |
| Warranty | 1 Years |
