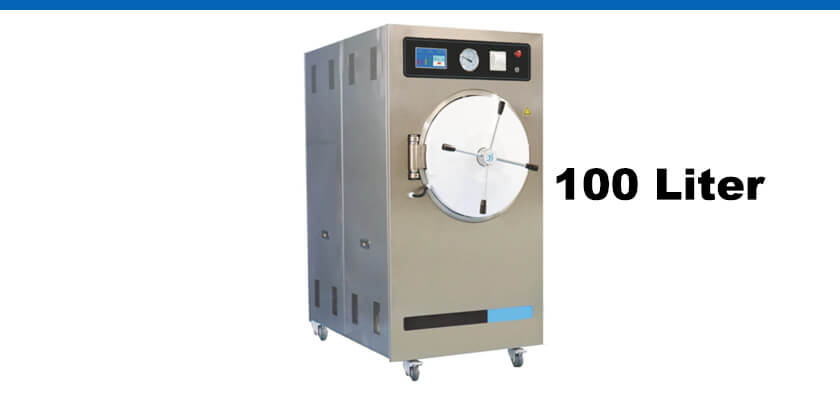

STEAM STERILIZER SQ Z12

Fitur Produk :

  • 3-times pre-vacuum, effective disharge cold air from chamber to improve steam efficiency
  • Internal steam generator, PLC control, space and energy saving
  • The post-sterilization hot steam is cooled down before discharge from machine
  • Equipped with water quality monitor. extend the machine service life.

Spesifikasi :

  • Model : SQ-Z12
  • Volume : 100 Liter
  • Chamber Dimension (cxL) : c420 x 700 mm
  • Overall Dimensition : 1150 x 770 x 1520 mm
  • Voltage : AC 380V 50Hz
  • Power : 10KW

Characteristic :

  • Capacity : 100 Liter
  • Power Supply : AC 380V, 50Hz
  • Working Pressures : 210kPa-230kPa (0.21-0.23 MPa)
  • Safety Over-pressure :
    1. Over-pressure warning alarm
    2. Safe pressure relief valve
    3. Over-temperature shut-off device
  • Safety Door Interlock : PLC set : the door can't open while vessel is under pressure; can't start up if the door is not properly closed
  • Safety Emergency Shut-off : In a readily accessible location
  • Safety Surfaces : Surfaces NOT exceeding 50°C
  • Door : Mechanical rotating lockig with electronic sensor
  • Indicator For Temperature :
    ±1% accuracy over the scale range 50°C to 150°C;
    0.1°C resolution for digital display
  • Display Indicators : Door locked, operation in progress, major operating cycle stages, and cycle complete, times, temperature, pressure, fault condition readable by normal vision from a distance of 1.2m
  • Manuals :
    English language.
    1. Operation instructions (including process description)
    2. Loading and maintenance procedures
    3. Short-form of operation and loading procedures
  • Spare Parts (Option) :
    a. Heating element
    b. Door seal/gasket
    c. Replacement air filter
    d. Safety valve
    e. Pressure and temperature gauges
No. AKL KEMENKES RI AKL 20903025779
Category Advanced Vacuum Steam Autoclave
Type SQ-Z12
Brand SANQIANG
Made In China
Weight NW : 290KG, GW : 347KG
Dimension Case Size : 120x83x157cm
Capacity 100L
Warranty 1 Years
